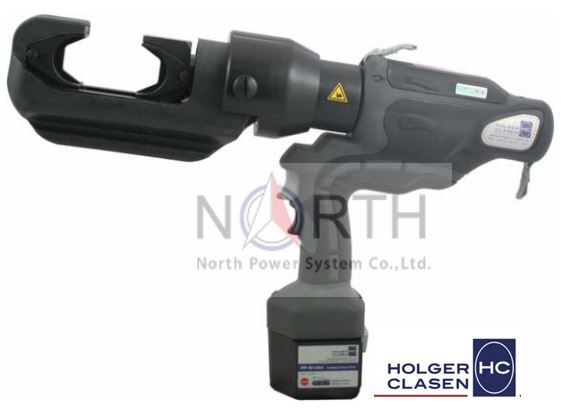

BATTERY-OPERATED CRIMPING TOOL

The open crimping head simplifies positioning of the tool on the cable lug. It is ideally suited for power stations
and their service providers, railroad and energy providers. The long stroke of 50 mm and the crimping force of
134 kN confirm the wide field of application.

TECHNICAL DATA

Crimping Force 134 kN

Crimping Width max 15 mm

Stroke 50 mm

Weight* 9,5 kg

Dimensions
L x W x H 518 x 102 x 377 mm

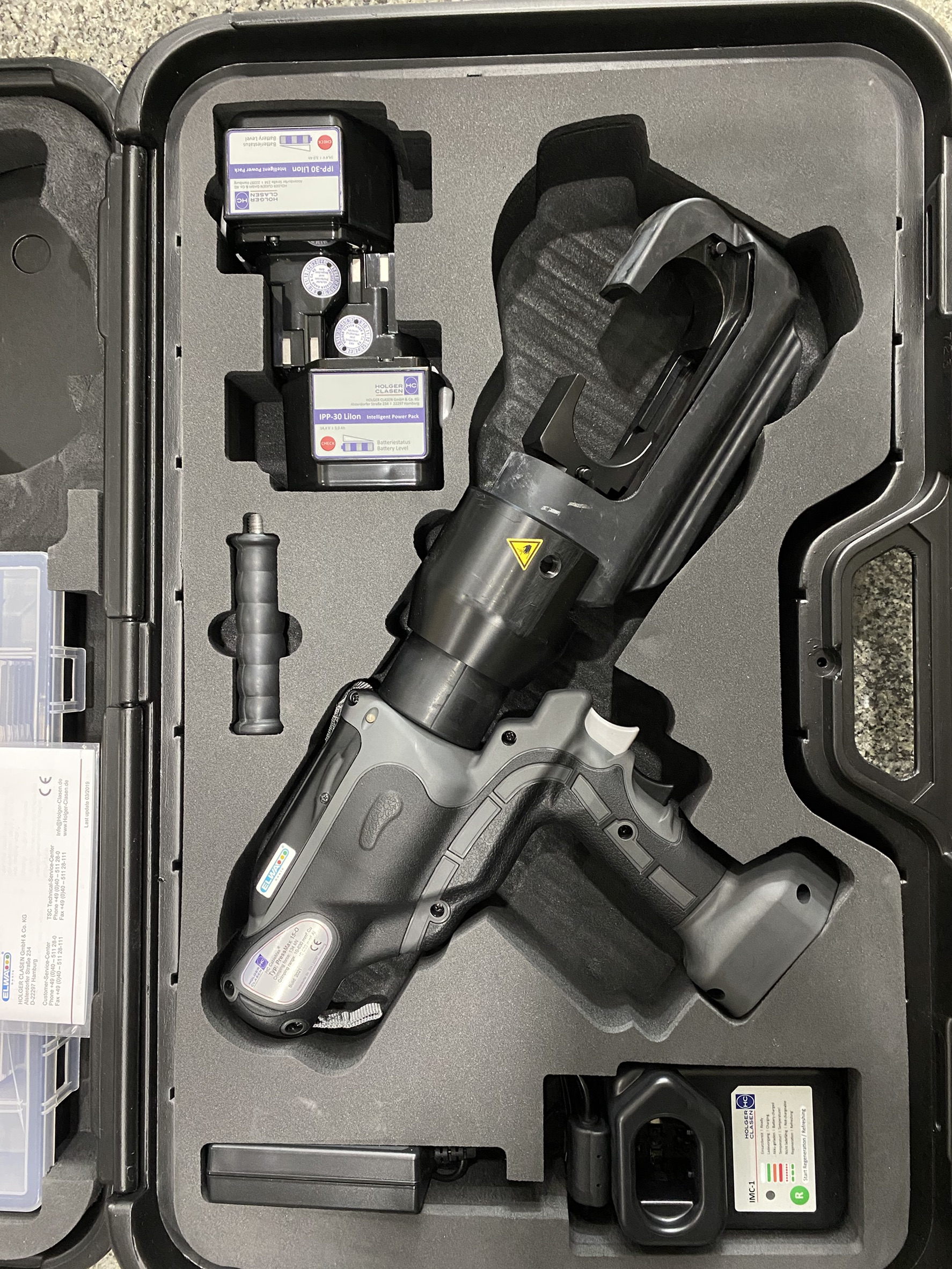

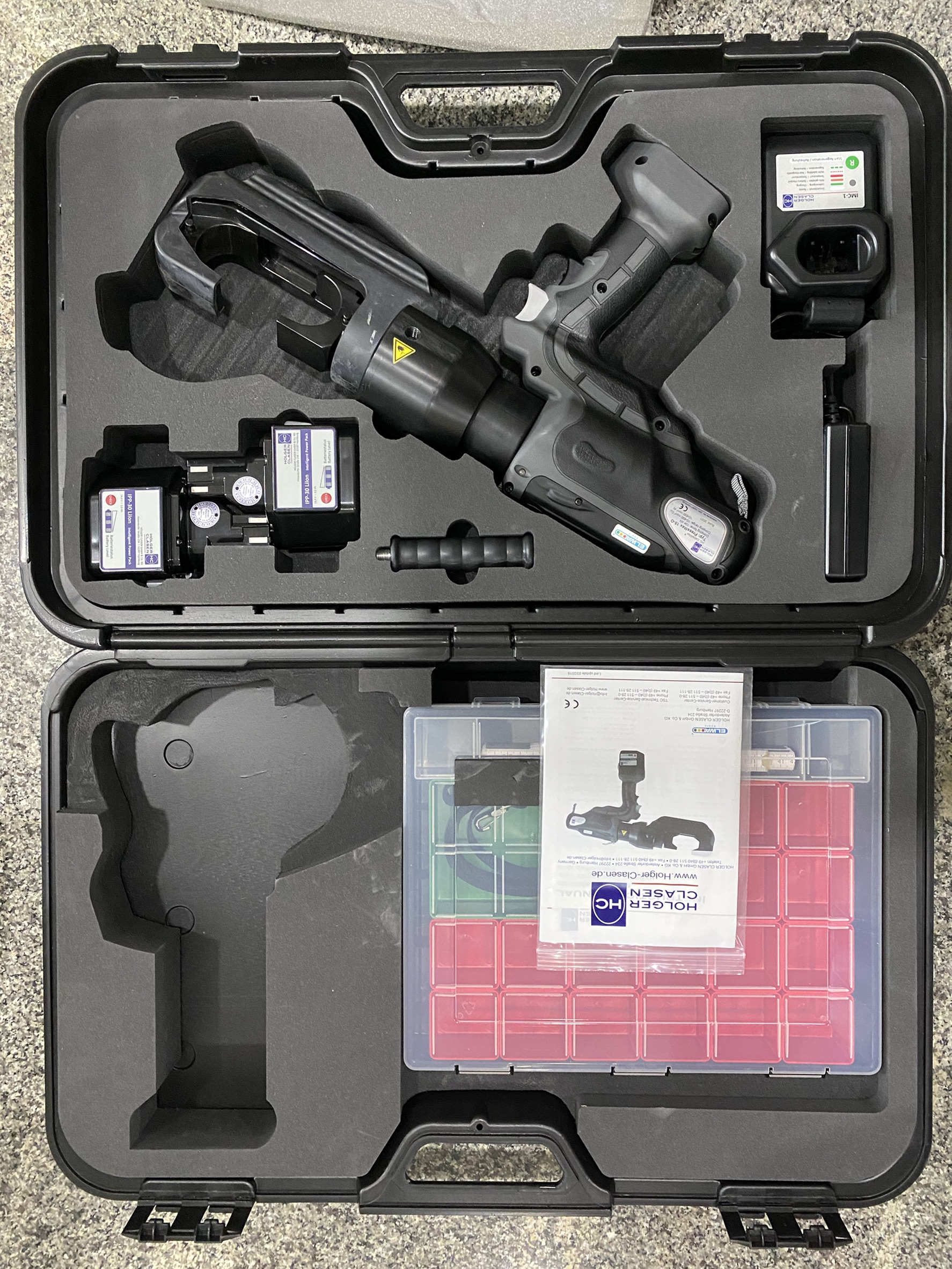

Transportation case with compartments for tool, 2 batteries,
battery charger

* without battery

Adapter for C-shaped Dies

Adap C-15 79500105

Scope of Delivery: PressMax 15-O (Item No. 76735500) with
battery IPP-30, battery charger IMC-1 (AC), handle, carrying strap
and transportation case.
