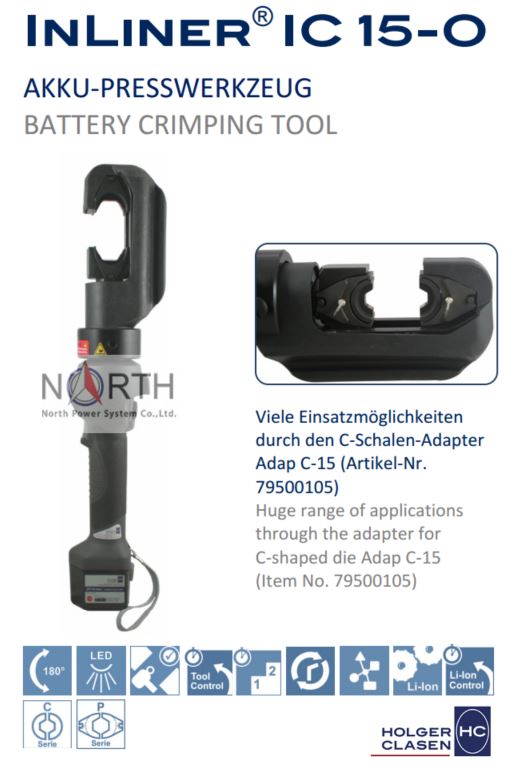

InLiner® IC 15-O
BATTERY CRIMPING TOOL
With this bar-shaped tool you can crimp cable lugsand connectors up to 630 mm2 according to DIN.Due to its long stroke of 50 mm it can even be usedfor H-clamps 2 x 120 mm². Range of application: Railroad and power supply companies, electrical installation, service providers, industrial cable assembly.• Slim design for working in difficult to access places• The long stroke (50 mm) enables arbor crimps andthe assembly of tab terminals, e.g. H-clamps up to2 x 120 mm2• Short crimping cycles by 2-step hydraulic system
TECHNICAL DATA
Force 134 kN
Crimping Width Max. 15 mm
Stroke 50 mm
Battery Voltage 14,4 V
Weight* 8,9 kg
DimensionsL x W x H 586 x 101 x 140 mm
Item No. Set 76802600
Scope of delivery:InLiner® IC 15-O (Item No. 76702600), battery IPP-30,battery charger IMC-1 (AC), handle, transportation case
